High-volume production with cup-drawing and redrawing presses
Cupping systems & cupper presses & redraw systems
Highest quantities. Precise cup shapes. In one stroke.

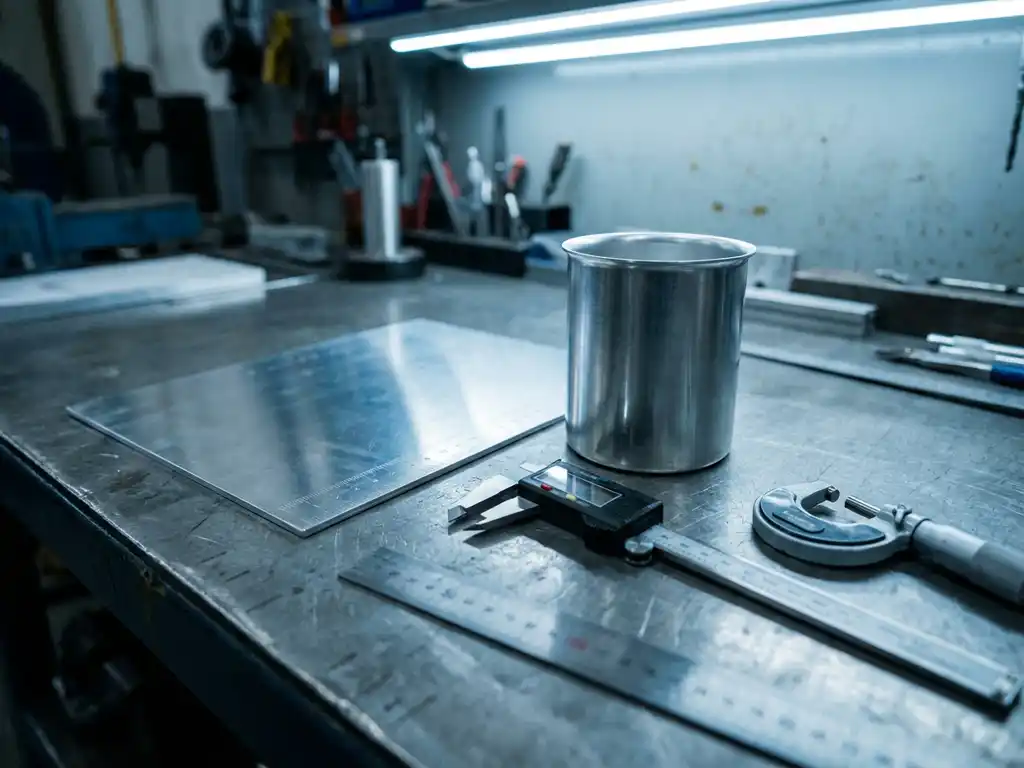

From wide metal strip to the perfect cup shape – in a single, highly efficient process step. Our HTPT cupping systems form the first and decisive stage in the process chain of high-volume thermoforming production. They are designed to maximize material utilization and provide the basis for any high-volume production – whether battery cups, aerosol cans or ammunition casings.
Machine principle & mode of operation

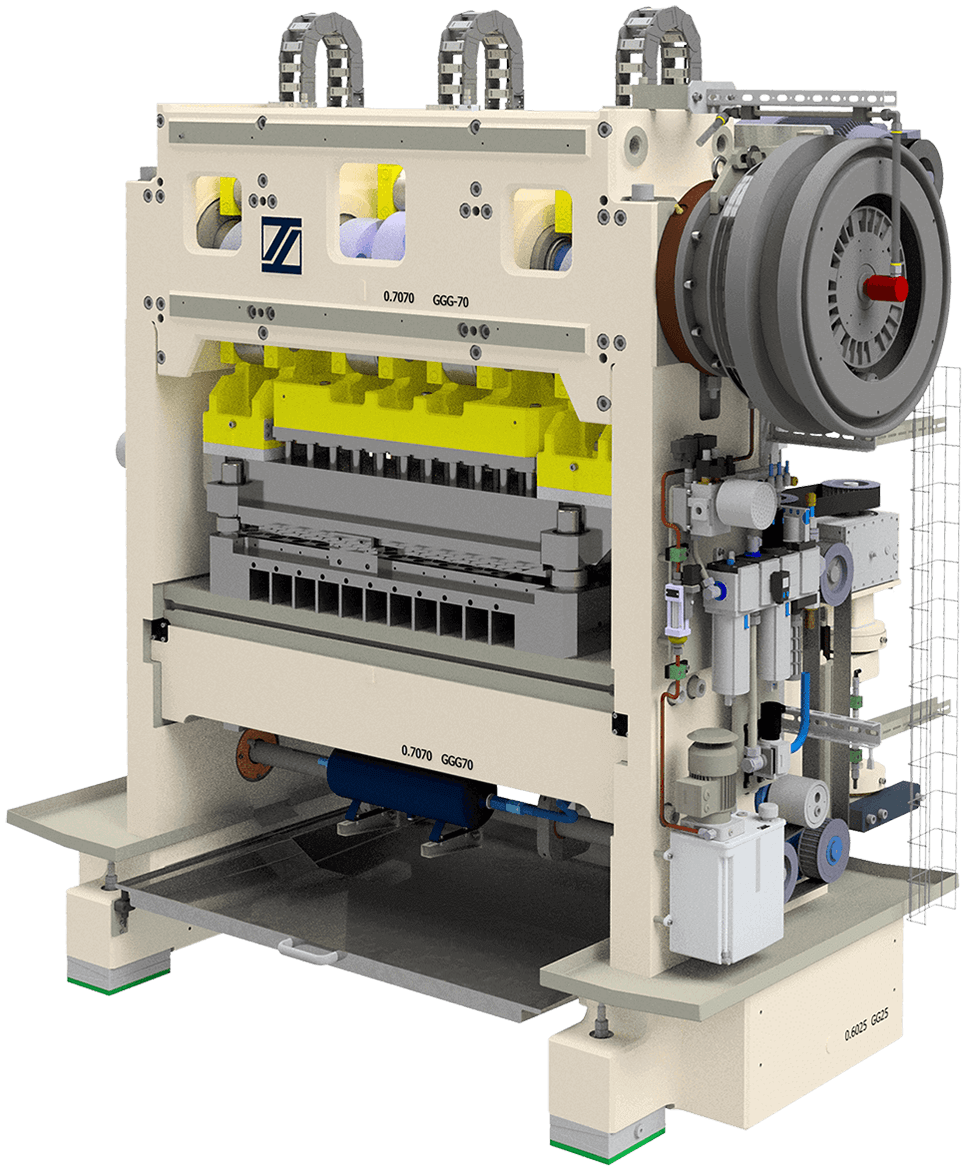

Our cupper is a specially developed mechanical press that forms extra-wide metal strips into precise cups in a combined blanking and cupping process. Mechanical energy and a precisely controlled ram stroke ensure reproducible results at maximum cycle rates.
The process is divided into three coordinated steps:
- Blanking – circular blanks are punched out of the fed metal strip in circular or oval shapes. By using extra-wide strips, several blanks can be removed simultaneously per stroke – for maximum material utilization and maximum productivity.
- Cupping – Cup forming – The blank is positioned on the die. The punch moves down powerfully and presses the blank – supported by a precisely controlled blank holder – into the die cavity. The result: a defined, reproducible cup geometry.
- Ejection – After forming, the blank holder retracts and the finished cup is automatically ejected from the die – ready for the next process step.
Performance features
High speed
Mechanical presses enable extremely high stroke rates – our cuppers achieve production rates of up to 2,000 parts per minute. This makes them the first choice wherever maximum output in continuous operation is required.
Precision
The mechanical design ensures precise and repeatable control of the depth and shape of the buckets – stroke by stroke, part by part. Tight tolerances are reliably maintained, even at high cycle rates.
Material efficiency
Our HTPT Cuppers are consistently designed to optimize material utilization. The raw material requirement is minimized and the yield from each coil is maximized thanks to the targeted division of blanks in the extra-wide strip.

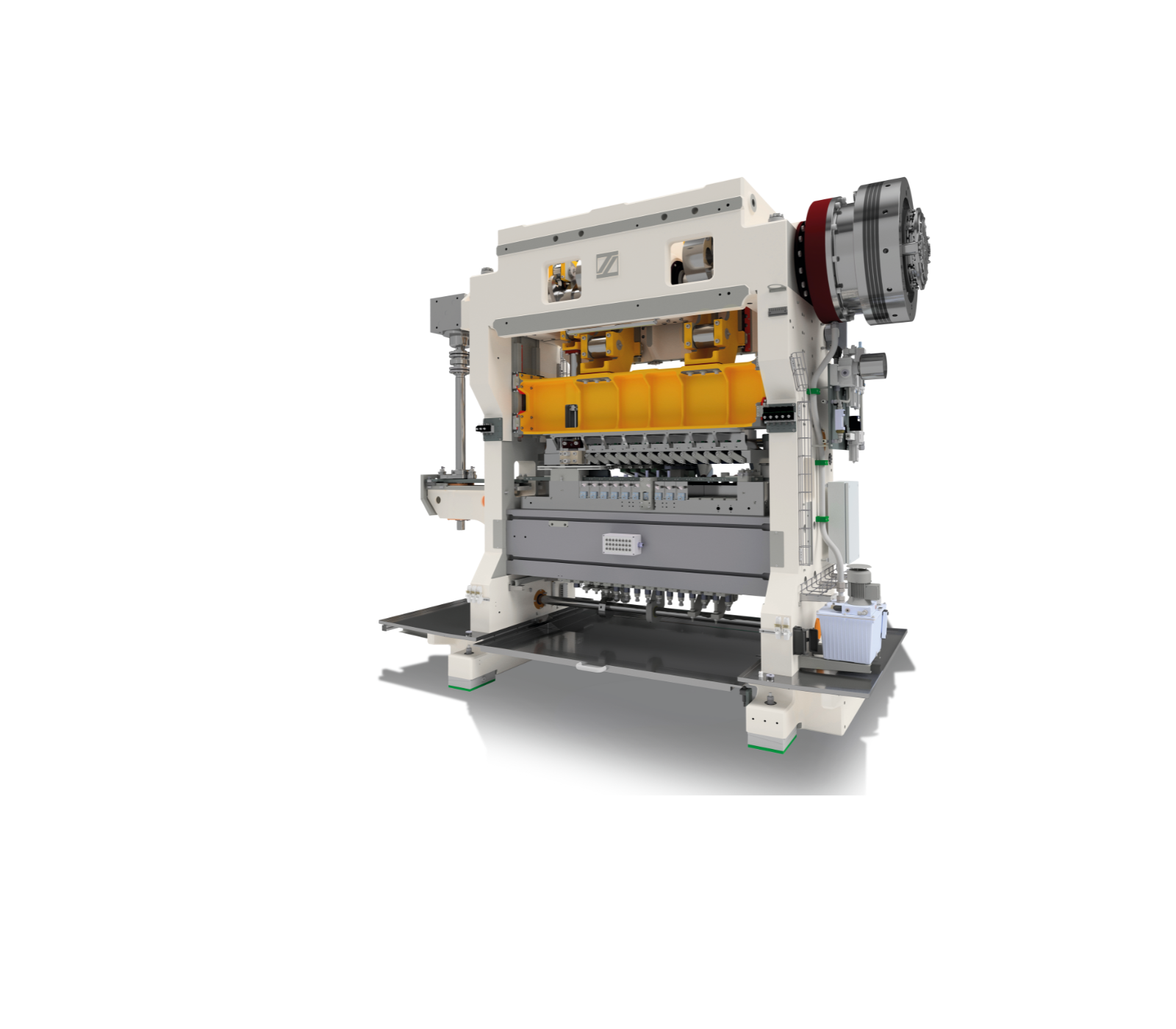

Redraw systems – further processing in transfer presses
The cups produced are then further formed in downstream transfer presses (redraw systems). Typically, 2 cups are processed per stroke – a process that doubles production output and is particularly optimized for high-volume applications.
In these redraw systems, each cup passes through several forming stages until the final component geometry is achieved – precisely, efficiently and fully automatically.

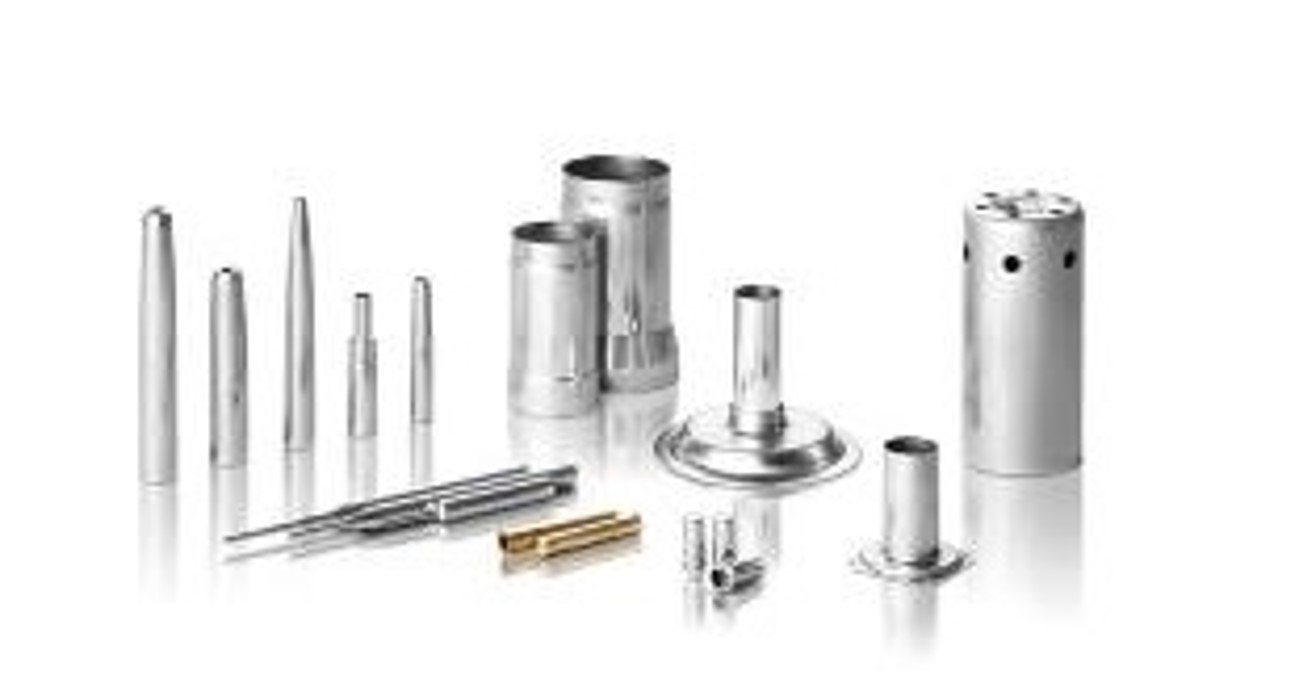

Areas of application
Cupping systems and redraw presses are the preferred solution wherever maximum quantities, tight tolerances and maximum process reliability are required:
- Defense & Ammunition – Cartridge cases, bullet components, primer cases
- Battery technology – battery housings and sleeves for industrial and consumer applications
- Food & beverage industry – can bodies, containers, closures
- Aerosol containers – pressure vessels and housings with tight dimensional tolerances
- General deep drawing – High-volume series parts for industry and household
Technical highlights
- Up to 2,000 parts/minute – maximum output in high-speed operation
- Combined blanking & cupping process in a single machine stroke
- Extra wide belt processing for multiple blanks per stroke – maximum material utilization
- Precise, repeatable cup geometry through controlled mechanical design
- Precise hold-down force control for reproducible cup quality
- Automatic ejection for trouble-free continuous operation
- Redraw-capable bucket geometry – optimally matched to downstream transfer presses
- 2-cup-per-stroke principle in redraw systems for double the output capacity
- Modular system integration – seamless connection to existing production lines
The complete process chain from a single source
Our cupping system is the ideal introduction to a fully integrated thermoforming process chain:
| Process step | Machine | Result |
|---|---|---|
| Blanking & Cupping | HTPT Cupper Press | Precise cups made from wide metal strip |
| Redraw & forming | PTR transfer press | Finished component geometry |
From the first blank to the finished component – we supply the complete machine solution and support you from design to commissioning.
Tailor-made for your production
Each cupping system is individually designed to meet your requirements – tailored to the strip width, sheet thickness, cup geometry and desired output rate:
- Advice on system design and process chain planning
- Selection and configuration of cuppers and redraw presses
- Tool conception and die-set design
- Commissioning, training and after-sales support
