multiple Transfer presses
Transfer presses & multiple die presses
Precise forming technology for the highest demands
From the blank or strip to the finished component – in a continuous, highly efficient process. Our transfer presses and step forming presses in the PTR series have been specially developed for the efficient series production of deep-drawn parts – for precise results with maximum productivity.
Drive technology & machine principle
The heart of our PTR presses is the cam-controlled slide – a proven technology that has been specially optimized for transfer press applications. The adaptable cam profile enables targeted dwell times at the dead centers, which ideally supports parallel die processes or the high-speed processing of sensitive materials.
Thanks to the cam design specially developed for the respective application in combination with optimized moving masses, our presses achieve uniquely low-vibration machine operation – without the need for a complex weight balancing system. Permanently optimized guides also ensure maximum precision and reliable parallel running of the press ram.

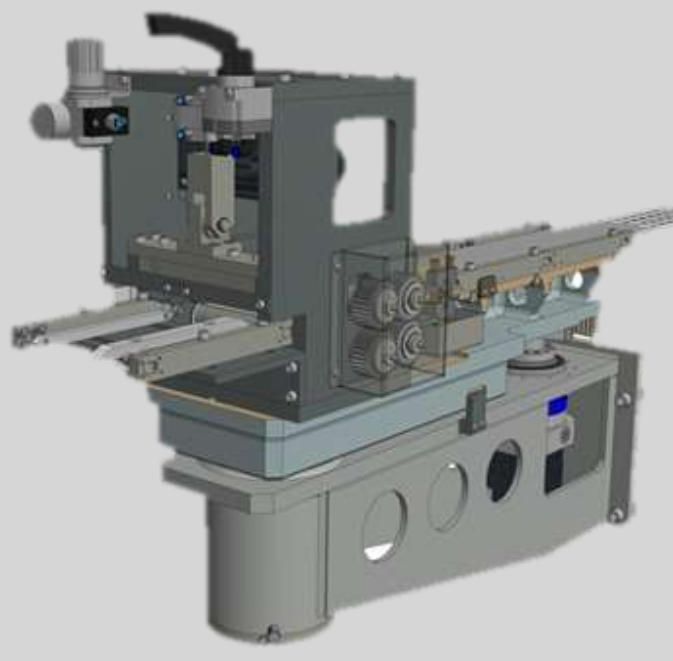

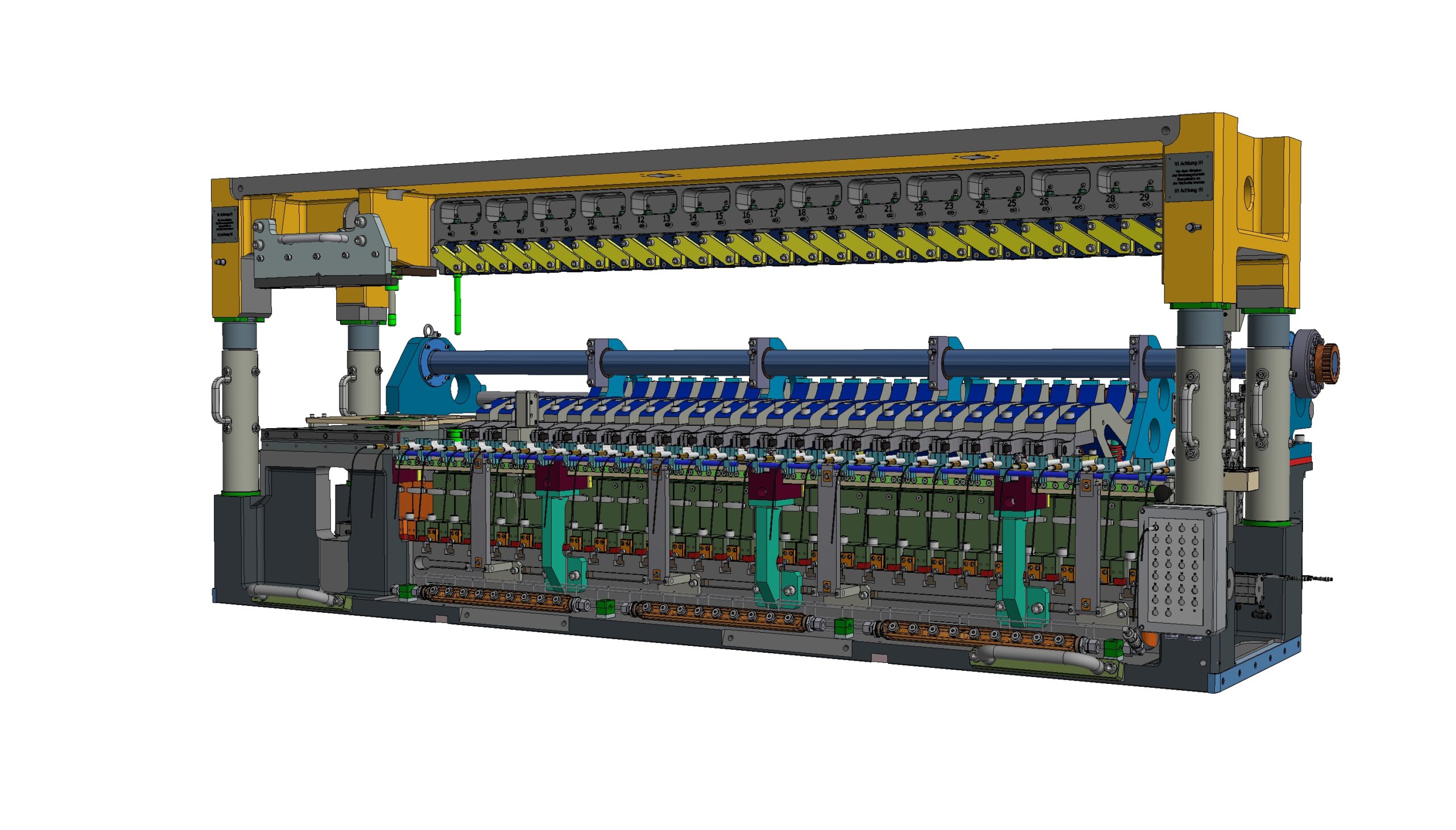

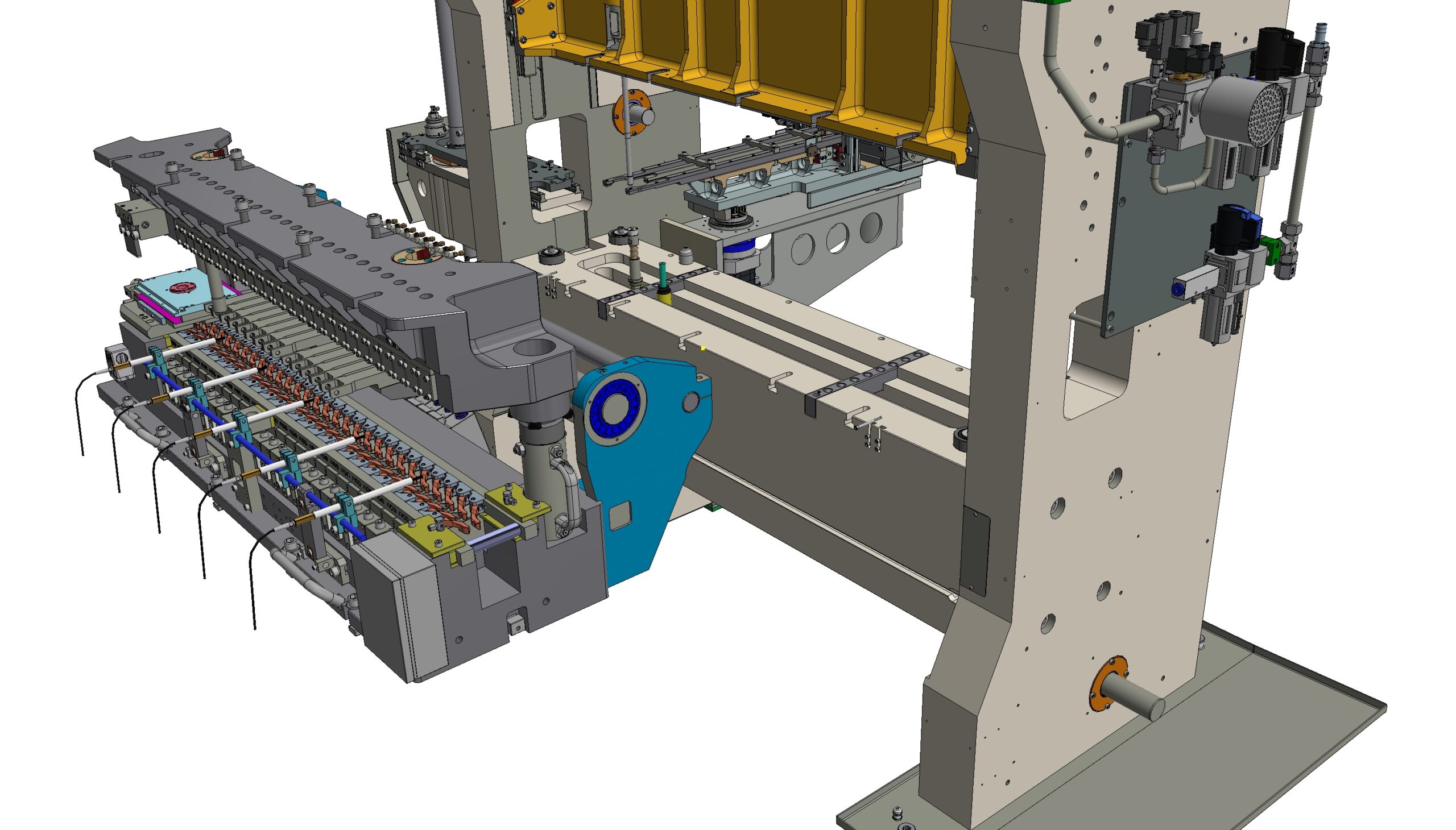

The modular machine design allows the flexible implementation of individual technical parameters – adapted to your specific application. Servo feed systems in various designs as well as mechanical or servo-controlled transfer systems round off the concept. The tool carrier system (die set) supplied is tailored precisely to the user’s requirements.

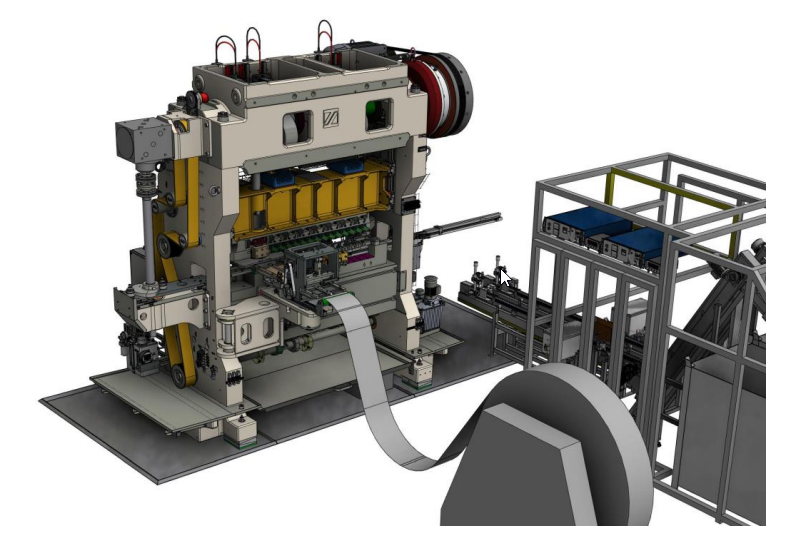

Functional principle
The forming process is divided into precisely coordinated stages:
- Feeding – strip or blank feeding depending on the application
- Cup stage (1st stage) – deep drawing of the blank to form the cup
- Tool forming stages – step-by-step shaping of the component geometry in several stages
- Ejection / removal – automated or manual
Each press is equipped with customized draw heights in the cam and built entirely according to customer specifications – for maximum flexibility and optimum adaptation to your tools and processes.
The PTR series – Our machine models
| Model | Pressing force | Special features |
|---|---|---|
| PTR 10 | 10 t | Table length up to 1.5 m – ideal for small, precise parts |
| PTR 25 | 25 t | Compact solution for medium series |
| PTR 45 | 45 t | Versatile for a wide range of applications |
| PTR 65 | 65 t | Powerful for demanding deep-drawn parts |
| PTR 85 | 85 t | High-performance press for heavy forming tasks |
All models: Customer-specific pull heights in the cam – Customized configuration on customer request
Technical highlights
- Cam-controlled tappet with adjustable dwell time at the dead centers
- Low-vibration operation thanks to optimized cam design and moving masses – without counterbalance system
- Permanently optimized guides for maximum precision and parallel running of the press ram
- Strip and blank feed for flexible material processing
- Integrated cup stage as the first forming step
- Multi-stage tool forming in one continuous pass
- Servo and mechanical transfer systems for optimum parts transport
- Customized die set – precisely tailored to your tools
- Tonnages from 10 to 85 t for a wide range of applications
- Modular machine configuration – built according to your requirements

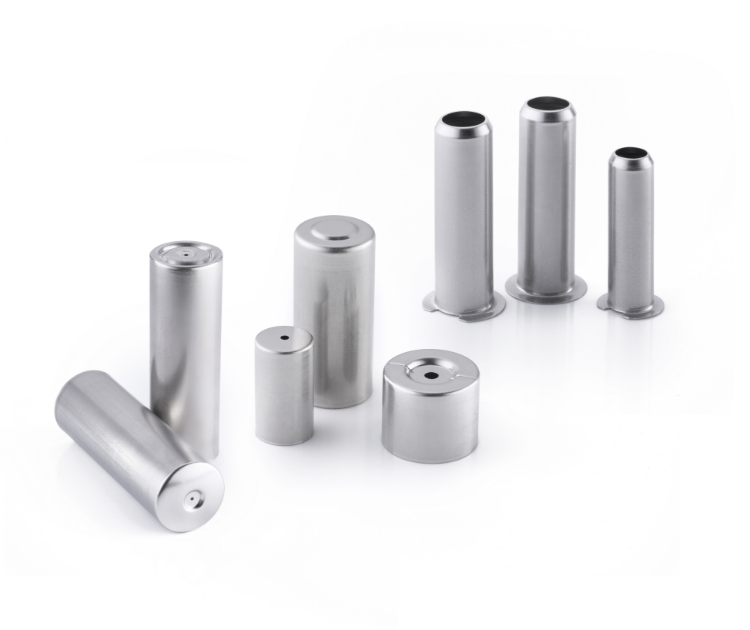

Areas of application
Our PTR presses are used worldwide in a wide variety of industries:
- Food & beverage industry – cans, containers, closures
- Aerosol containers – precision deep-drawn parts for pressure vessels
- Defense & Armament – Shells, bullet components, casings
- General deep drawing – structural components, housings, molded parts
- Automotive – small components, fastening elements, hydraulic components
- Industrial manufacturing – medical technology, electronics, household goods
Tailor-made for your process
Each PTR press is individually designed and manufactured according to customer requirements. We support you from the initial inquiry through to commissioning and beyond:
- Advice on machine design and tool conception
- Selection of the right model based on part geometry, material and quantity
- Project-specific configuration of the cam pull heights and the die set
- Commissioning and after-sales support
Contact us now
Would you like to find out more about our PTR press series or do you have a specific inquiry?
Contact us – we will be happy to provide you with an individual offer.
Transfer presses and multiple transfer presses
